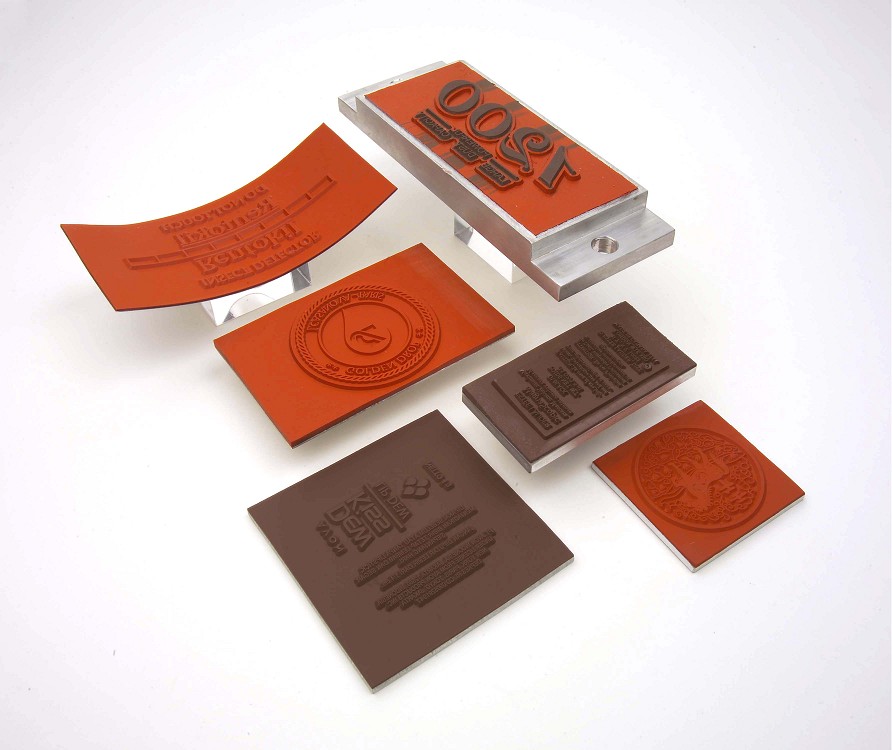

Contoured Silicone Rubber Dies





Contoured Image / Contoured Silicone Rubber Dies Contoured Image dies are used for printing an image on a contoured plastic surface such as compact powder casing, ball point pen barrels, audio speaker cabinets rings... For hot stamping on contoured area such as the rim of speaker rings, radio buttons, radio cassette doors, radio ornaments, we make use of contoured silicone rubber dies. These dies are made using a precision machined mold that is an exact replica of the profile of the area to be hot stamped. The rubber is molded onto a precision machined metal backing for better performance. Different rubber hardness is also used to cater to the requirement of each part.



1. Rubber hardness ranges from 60-90 Shore A Durometer.
2. Backing of dies available in aluminum or other materials.
3. Customized mounting holes available.

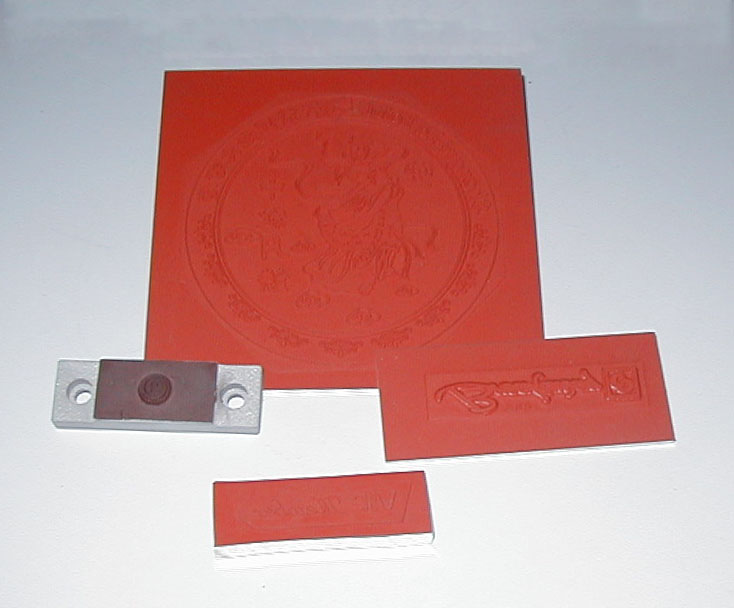

Flat Image Silicone Rubber Dies



These dies are used to hot stamp an image onto the raised area of flat plastic surfaces such as cosmetics boxes, toiletries containers, radio casings, jewellery boxes, ball point pen barrels, name badges... They are also used to hot stamp around the periphery of ball point pen barrels, radio casing foot mounts, bottle caps etc.



1. Rubber hardness ranges from 60-90 Shore A Durometer.
2. Available in different thickness of aluminum backing.
3. Customized mounting holes and trimmings available.

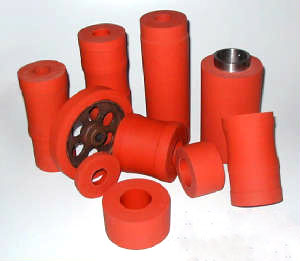

Silicone Rubber Rollers



These rollers are used to hot roll large surface which are flat or contoured. They are primarily used to hot roll on television cabinet, cassette doors, radio cabinets, wooden frame moldings, etc.



1. Rubber hardness ranges from 60-90 shore A Durometer.
2. Available in different Outer Diameter and Inner diameters and length.
3. Rollers are ground to exactly concentric O.D. to I.D.
4. Rollers can be ground to fit the contoured profile of the product.
5. Rollers can be made coreless or molded onto a steel or aluminum sleeve.
6. Re-conditioning and special design rollers are also available.

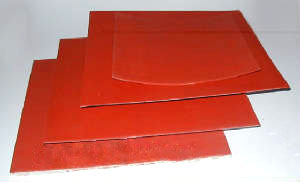

Silicone Rubber Flat Sheet



These sheets are used in decorating the raised area of plastic parts as well as for heat sealing purpose.



1. Rubber hardness ranges from 60-90 shore A Durometer.
2. Available in different rubber and aluminum thickness combination.
